Small Road Construction Motor Grader GR135 With Hydraulic Brake System
XCMG New 135 Horsepower Small Road Construction Motor Grader GR135 With Hydraulic Brake System
Product Description
1. The Small Road Construction Motor Grader GR135 adopts a Dongfeng Cummins 6BT5.9-C130-II turbocharged diesel engine, which has a large output torque and power reserve factor and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. The drive axle is a dedicated XCMG axle.
4. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
5. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
6. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
Advantage
1. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2. The drive axle is a dedicated XCMG axle.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
5. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
Small Road Construction Motor Grader GR135 Main parameter
| Description | Unit | Parameter value |
| Engine model | | 6BT5.9-C130-Ⅱ |
| Rated power/speed | kw(r/min) | 97(2200) |
| Overall dimension (standard) | | 8015X2380X3050 |
| Total weight (standard) | kg | 11000 |
| Tire specification | | 13.00-24 |
| Ground clearance (front axle) | mm | 515 |
| Tread | mm | 2020 |
| Space of front and rear axles | mm | 5780 |
| Forward velocity | km/h | 5/8/13/20/30/42 |
| Reverse speed | km/h | 5/13/30 |
| Tractive effort f=0.75 | kN | 61.3 |
| Maximum gradeability | % | 20 |
| Tire inflation pressure | kPa | 300 |
| Working system pressure | MPa | 16 |
| Transmission pressure | MPa | 1.3—1.8 |
| Maximum steering angle of front wheel | | ±49° |
| Maximum slant angle of front wheel | | ±17° |
| Maximum oscillating angle of front axle | | ±15° |
| Maximum oscillating angle of equilibrium box | | ±16° |
| Maximum steering angle of frame | | ±27° |
| Minimum turning radius | m | 6.6 |
| Scrape knife | Maximum lift height | mm | 410 |
| Maximum cutting depth | mm | 515 |
| Maximum tilt angle | | 90° |
| Cutting angle | | 54°—90° |
| Angle of revolution | | 360° |
| Length & chord height | mm | 3048x610 |
| Coolant | L | 50 |
| Fuel tank | L | 260 |
| Engine | L | 18 |
| Transmission | L | 26 |
| Hydraulic oil | L | 96 |
| Drive axle | L | 28 |
| Balancing box | L | 46 |
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck .You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country , is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
Q: What is your leadtime ?
A: Usually it is 30-50 days after deposit received.
Packing and Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
Comply with export packaging requirements at any china port.

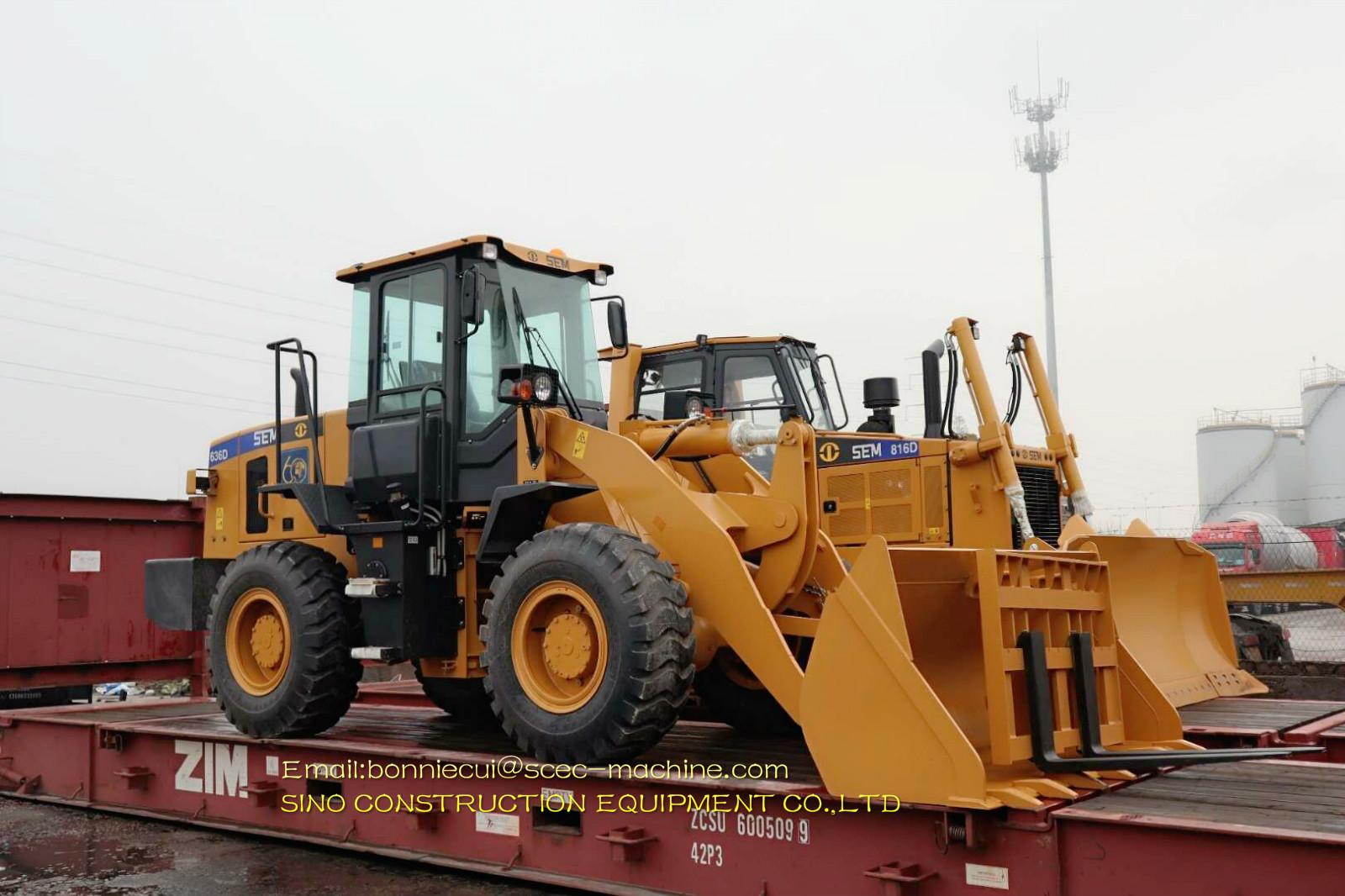

More photo for your reference
