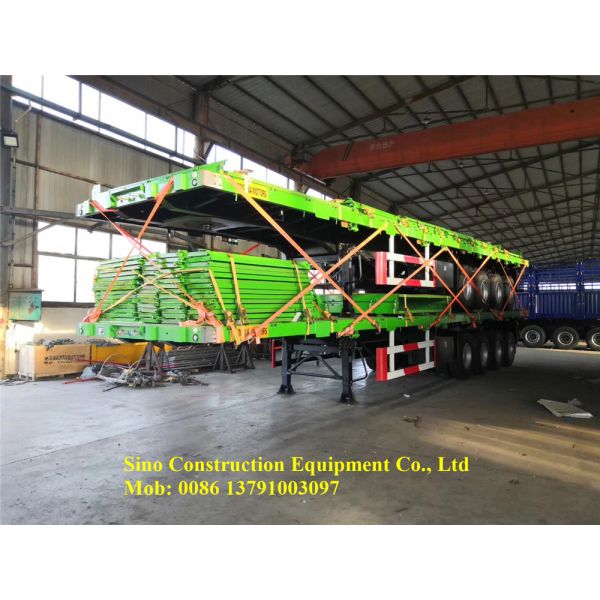

4 Axles 70ton Flat-bed Semi Trailer Container and Bulk Goods Heavy Duty Semi Trailer
Features of 4 Axles 70ton Flat-bed Semi Trailer Container and Bulk Goods Heavy Duty Semi Trailer
1. Adopt Fuwa axles, a famous domestic brand, with strong bearing capacity.
2. High-strength high-quality carbon steel
3.JOST outrigger
4.4 axles design, with a maximum load of 80t, which meets the requirements of the Ministry of Communications
Technical specification of 4 Axles 70ton Flat-bed Semi Trailer Container and Bulk Goods Heavy Duty Semi Trailer
| Items | Flatbed semi trailer |
| Loading Capacity | 70tons |
| Axle | 4 pieces, 13T FUWA/BPW axle |
| Tyre | 16 pieces, 12R22.5,385/80R22.5 |
| Dimensions(LxWxH) | 13500mm x 2500 x 1550mm |
| Tare weight | 7.5tons |
| Axle spacing | 1310mm |
| Rims | 9.0-22.5 |
| Suspension System | Leaf spring suspension / air suspension |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve |
| Main Beam | Height 500mm Q345 carbon steel |
| Chassis | upper 12mm, lower 14mm. Mid web 8mm |
| Twist locks | 12 units,THT brand |
| Kingpin | 2’ or 3.5’ interchangeable,JOST brand |
| Landing Gear | 28 Tons , Two speed manual operation |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
| Tool Box | One tool box with a set of standard trailer tools |
| Spare Tyre Carrier | One piece or two pieces |
Advantages:
1. Advanced Manufacturing Technology
Laser cutting, robot automatic welding, reliable quality
2. Advanced painting technology
KTL electrophoresis + powder spraying, instead of traditional paint process, has good anti-corrosion effect and long paint life.
3. Assembly structure
Frame parts adopt assembled structure to facilitate replacement and maintenance and reduce maintenance costs.
4. Customized design
More types of low-bed semi trailers can be selected:can cave loading type, tyre exposed design,single tire and double tyres, with rear ramp or front loading ramp which can meet the different needs of customers.
5. warranty
Main beam :2 years
6. World wide semi trailer parts brand like BPW,WABCO,JOST,Michelin brand
